Description

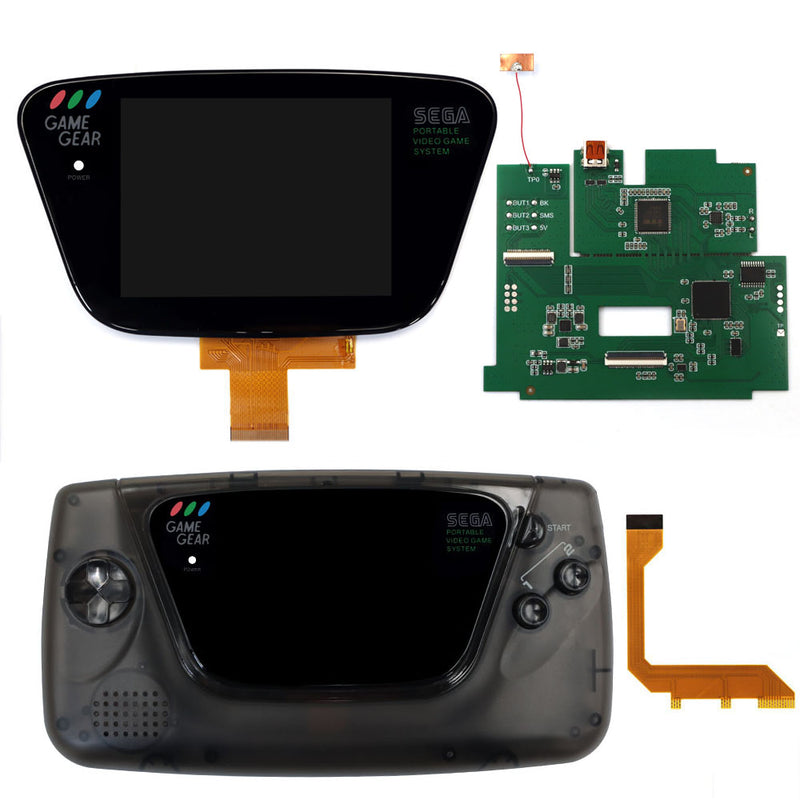

sega game gear Laminated 3.5" 640x480 HD Retro Pixel IPS LCD Kit For SEGA Game Gear w — Retro ModdingNOTE: This is the HDMI output version; shell trimming is needed to access the HDMI port. Shells can be found here: Hispeedido Shell for Sega Game Gear Laminated Screens This display by Hispeedido is the new standard and can be connected to a TV with its onboard HDMI output. Don't hesitate to upgrade your console now and play on the big screen! Please note that this kit requires more soldering than a typical IPS display installation. Compatibility
NOTE: This is the HDMI output version; shell trimming is needed to access the HDMI port.
Shells can be found here: Hispeedido Shell for Sega Game Gear Laminated Screens
This display by Hispeedido is the new standard and can be connected to a TV with its onboard HDMI output. Don't hesitate to upgrade your console now and play on the big screen!
Please note that this kit requires more soldering than a typical IPS display installation.
Compatibility
Support single-chip (1 ASIC) and dual-chip (2 ASIC) motherboards:
Single chip motherboard 1 ASIC PCB revisions numbers:
- 837-9130
- 837-9024
- 837- 8560
Dual chip motherboard 2 ASIC PCB revisions numbers:
- 837-7996
- 837-7719-01 VA0
- 837-7398-03
Not compatible with:
- Majesco Game Gear VA4 / VA5
- Motherboard with the "MADE IN TAIWAN" mention
Features
- 640x480 display resolution
- Trimming required
- Wide View angle up to 178 degrees
- Built-in OSD Menu
- Retro pixel Effects: Normal, Retro pixel, Scanline 1, and Scanline 2
- 5 brightness levels
- 8 color modes
- 3 LCD Aspect Ratio
- 720P HDMI Output with 3 different aspect ratios.
- Image position is adjustable. No worry about aligning the LCD screen
- FPC connect cable design. Simpler wiring and easier installation.
Included
- 1 x Backlight LCD
- 1 x FPC connect cables
- 1 x Double-sided tape
- 5 x 10pF capacitors
- 2 x 200Ohm resistor
- Wires
- 1x HDMI PCB version
- 1x HDMI adapter cable
Documentation
OSD Menu Operation
- Hold down: START, 1, and 2 buttons for 1 second to activate the OSD Menu
- Press the START button to select the adjustment item
- Press the 1 or 2 button to adjust the item
Installation Instructions
